What Is Motor Insulation Class? What Are The Different Classes? And Why Getting It Wrong Can Be Costly

At a chemical plant in Jiangsu, a dismantled motor lay in the maintenance shop, its windings completely carbonized. The plant manager sighed: "This is the third one this year—all insulation failures. After investigation, we realized we never even considered insulation class during selection. We just thought, if it spins, it's fine."

This confusion is common among engineers. What do those letters "B", "F", and "H" on a motor nameplate actually mean? What happens if you choose wrong? Why do some motors last a decade while others burn out in two years?

Let's break down this critical concept.

I. What Exactly Is Insulation Class?

Simply put, insulation class is the temperature grade that a motor's winding insulation materials can withstand. It's not about power or efficiency—it's the motor's "heat tolerance ID card".

When a motor runs, current in the windings generates heat. If this heat exceeds what the insulation can handle, the insulation accelerates aging, becomes brittle, carbonizes, and eventually loses its insulating properties, leading to short circuits and motor failure.

According to national standards, insulation materials are classified into seven grades—Y, A, E, B, F, H, C—each with a corresponding maximum allowable temperature-1:

In industry today, the most common are Classes B, F, and H.

II. What Happens When You Choose the Wrong Class?

A glass machinery client once told us their annealing furnace conveyor line, with ambient temperatures near 100℃, used a Class B motor (rated 130℃). Seemed sufficient. Yet within six months, three motors failed.

On-site measurement revealed the problem: actual winding temperatures reached 140℃—10℃ above Class B limits. According to the "10-Degree Rule" for insulation life, every 10℃ increase above the rated temperature cuts insulation life in half. A motor designed for 10 years lasts less than six months.

That's the cost of choosing wrong: not immediate failure, but catastrophic life reduction.

III. Deep Dive: Each Insulation Class and Wheatstone's Products

Class B (130℃) — The Industry "Veteran"

Class B insulation was the mainstream choice for traditional industrial motors, rated 130℃, suitable for moderate ambient temperatures and steady loads. Materials include mica, asbestos, and fiberglass bonded with organic varnish.

Wheatstone Products: For standard industrial applications like pumps, fans, and conveyors in normal ambient temperatures, Wheatstone's basic series motors use Class B insulation—cost-effective and perfectly adequate.

Class F (155℃) — The Modern "Workhorse"

Class F is now the standard for most industrial motors, rated 155℃—25℃ higher than Class B. Its materials handle heat better and tolerate harmonic heating from VFDs.

Case Study: French industrial fan manufacturer FMV used traditional insulation in motors operating at 150℃ internal temperature. Average life: 1,240 hours. After upgrading to Class F insulation systems (using Nomex® paper), average life more than doubled to 2,680 hours, with reliability exceeding 99%.

Wheatstone Products: Wheatstone's TBYC series PM synchronous motors and TYCXP series servo motors all feature Class F insulation as standard. In refinery heavy oil pumps and steel continuous casting lines with temperatures up to 150℃, these motors have accumulated over 30,000 hours of stable operation.

Class H (180℃) — The High-Temperature "Specialist"

Class H insulation is rated 180℃, specifically for high-temperature applications. Materials include polyimide film and silicone-based resins with superior heat resistance.

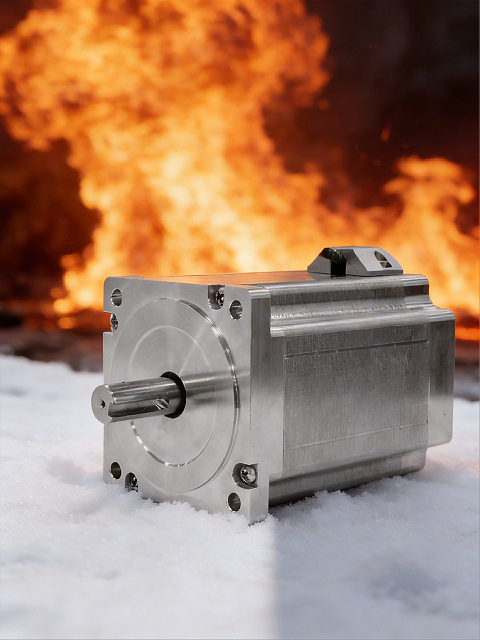

Wheatstone Products: Wheatstone's WCS series water-cooled servo motors and HS series high-temperature stepper motors use Class H insulation. In glass annealing furnaces and ceramic sintering lines with ambient temperatures above 150℃, these motors maintain winding temperatures below 155℃, achieving double the service life of conventional motors.

Class C (>180℃) — The Extreme "Ceiling"

Class C has no fixed upper limit, generally referring to temperatures above 180℃-7. These motors use ceramic insulation and mica tape composites.

Wheatstone Products: Wheatstone's custom deep-sea motors and high-temperature vacuum motors feature Class C insulation with SmCo magnets. In refinery heavy oil pumps (180℃ ambient) and deep-sea hydrothermal exploration (high temperature, high pressure), they've operated continuously for two years without failure.

IV. Explosion-Proof + High Temperature: Special Insulation Requirements

For explosion-proof motors, insulation requirements are even more demanding. The flameproof enclosure hinders heat dissipation—for the same power, internal temperatures can be 10-20℃ higher than standard motors-9.

Wheatstone Explosion-Proof High-Temperature Motors: The TBYC-EX series uses Class F or Class H insulation with Ex d IIB T4 flameproof construction. At a Shandong refinery heavy oil transfer system with 160℃ ambient, these motors have run 36 months continuously, winding temperatures below 145℃, efficiency consistently above 92%.

V. Selection Guide: How to Choose Insulation Class

VI. Final Thoughts

Insulation class isn't just a number on a motor nameplate—it's the key parameter determining motor life. Choose right, and your motor lasts a decade. Choose wrong, and it fails in months.

Wheatstone has nearly two decades of experience in specialty motors. From Class B to Class C, from standard to explosion-proof, from general-purpose to custom—every motor's insulation system undergoes rigorous material selection and process validation. If you have questions about insulation class selection or need custom solutions for special applications, contact the Wheatstone technical team.

Contact Jiangsu Wheatstone: wheatstonemotor.com. Ask for an engineer directly.
