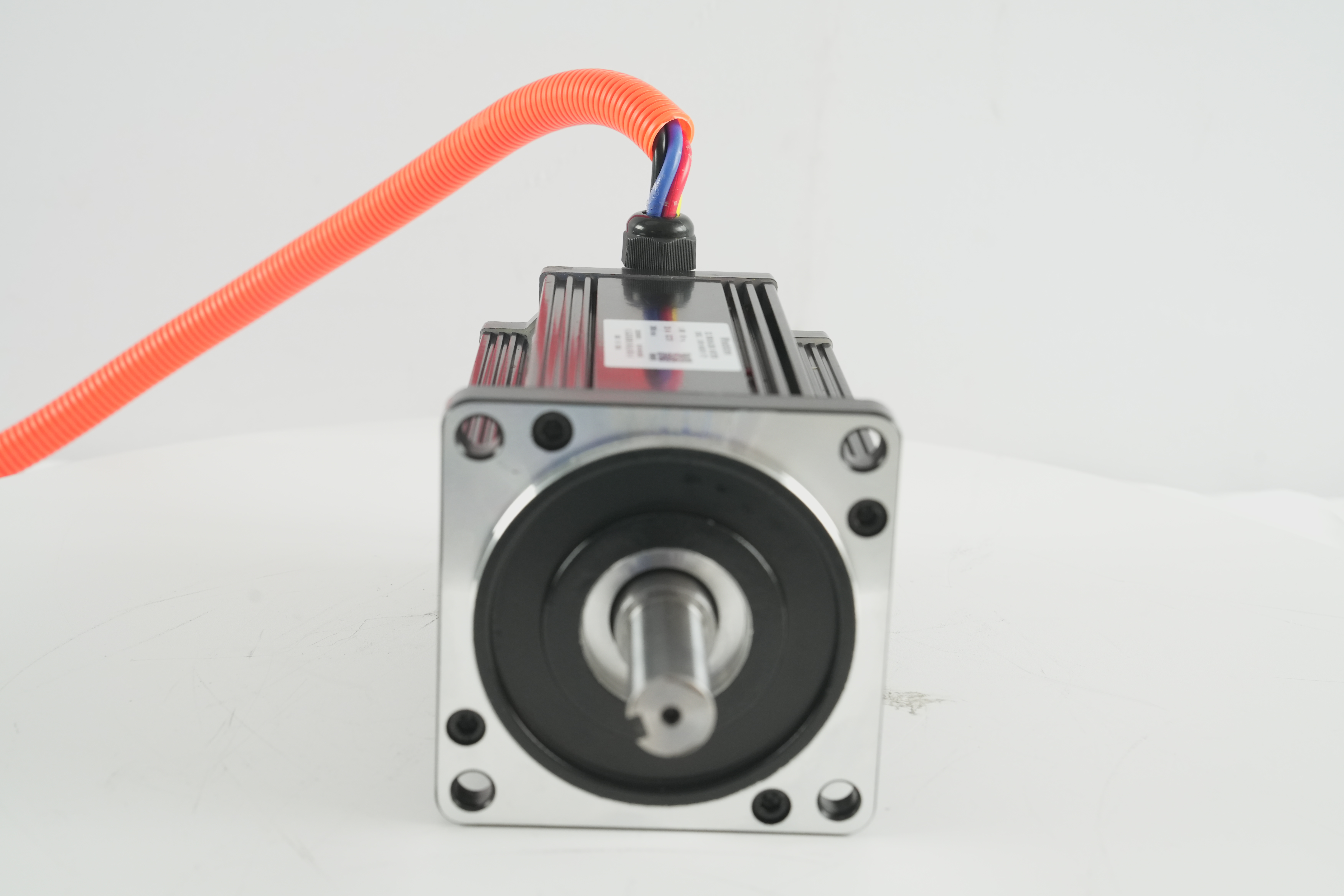

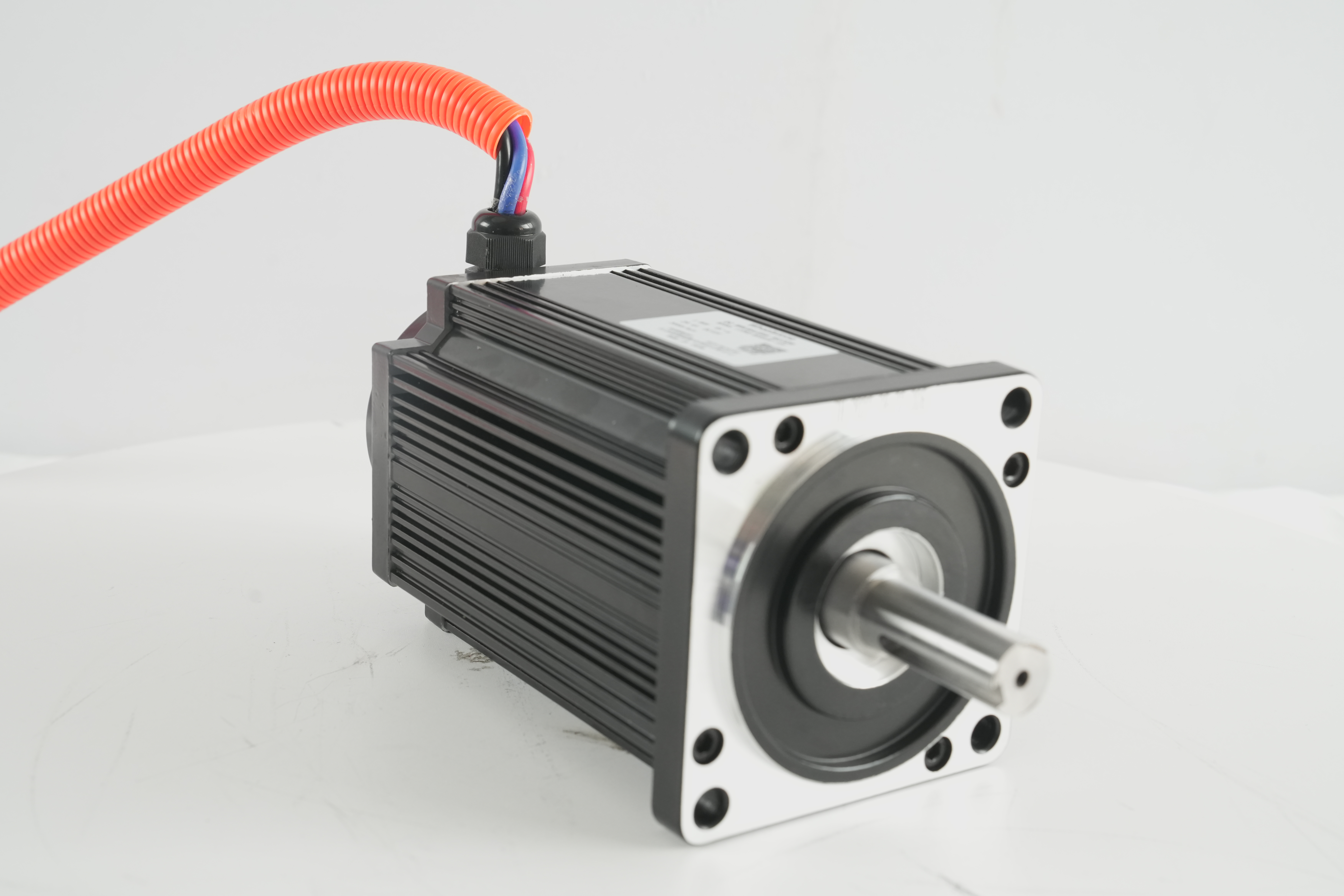

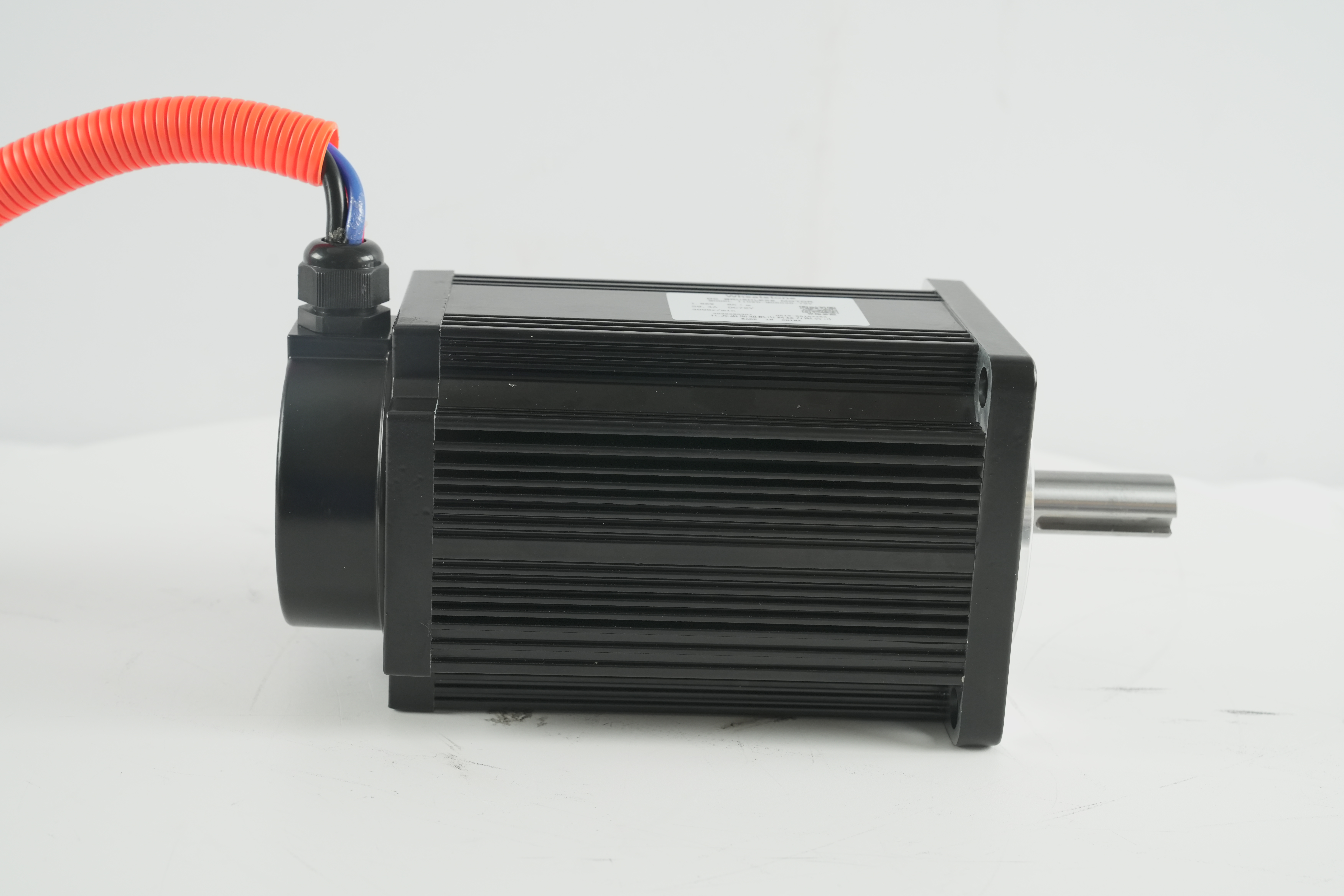

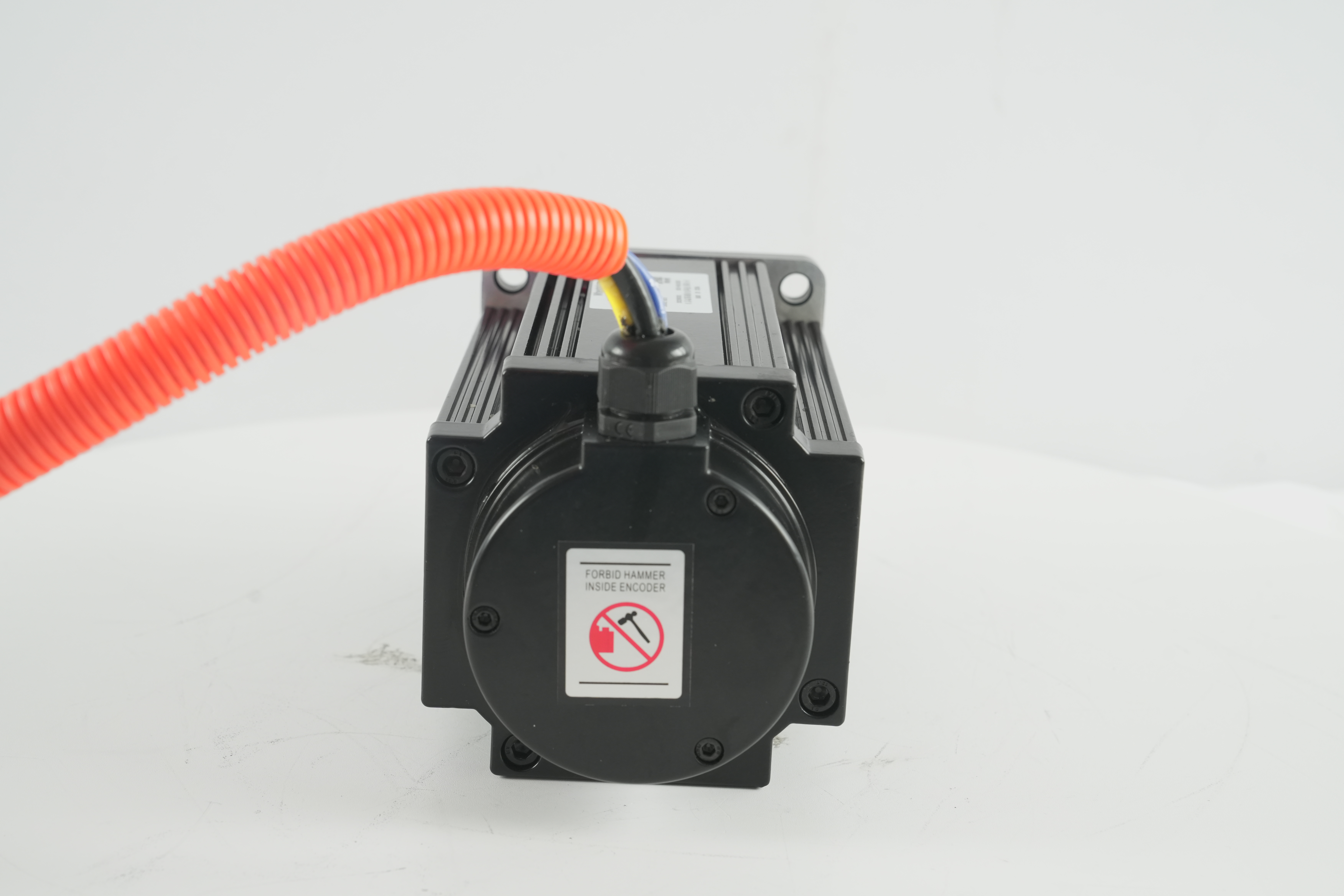

110 Dc Brushless Motor

Motor Model

Motor Model	L(mm)	L2(mm)
110ST-H020XX-XXV	144.5
110ST-H040XX-XXV	169.0	199.0
110ST-H060XX-XXV	199.0	229.0
110ST-H020XXB-XXV	227.0
110ST-H040XXB-XXV	251.5
110ST-H060XXB-XXV	281.5

Note: For the 110 series, when the rated current exceeds 42A, the motor length is L2 (if L2 is omitted, the length defaults to L).

                                                                    Motor Dimensions

Electrical Parameters

Main performance parameters
Motor Model	110ST-H02030-24V	110ST-H04030-24V	110ST-H06020-24V	110ST-H09015-24V
Rated Power(KW)	0.6	1.2	1.2	1.4
Rated current(A)	31.3	62.5	62.5	72.9
Rated speed(RPM)	3000	3000	2000	1500
Maximum Speed(RPM)	3600	3600	2400	1800
Rated Torque(NM)	2.0	4.0	6.0	9.0
Maximum Torque(RPM)	6.0	12.0	18.0	27.0
Inertia of rotor(kg.cm²)	3.1	5.4	7.6	10.8

Main performance parameters
Motor Model	110ST-H02030-48V	110ST-H04030-48V	110ST-H06020-48V	110ST-H09025-48V
Rated Power(KW)	0.6	1.2	1.2	1.4
Rated current(A)	14.7	29.4	44.1	58.8
Rated speed(RPM)	3000	3000	2000	2500
Maximum Speed(RPM)	3600	3600	2400	3000
Rated Torque(NM)	2.0	4.0	6.0	9.0
Maximum Torque(RPM)	6.0	12.0	18.0	27.0
Inertia of rotor(kg.cm²)	3.1	5.4	7.6	10.8

Main performance parameters
Motor Model	110ST-H02030-72V	110ST-H04030-72V	110ST-H06030-72V	110ST-H09030-72V
Rated Power(KW)	0.6	1.2	1.2	1.4
Rated current(A)	9.8	19.6	29.4	44.1
Rated speed(RPM)	3000	3000	3000	3000
Maximum Speed(RPM)	3600	3600	3600	3600
Rated Torque(NM)	2.0	4.0	6.0	9.0
Maximum Torque(RPM)	6.0	12.0	18.0	27.0
Inertia of rotor(kg.cm²)	3.1	5.4	7.6	10.8
