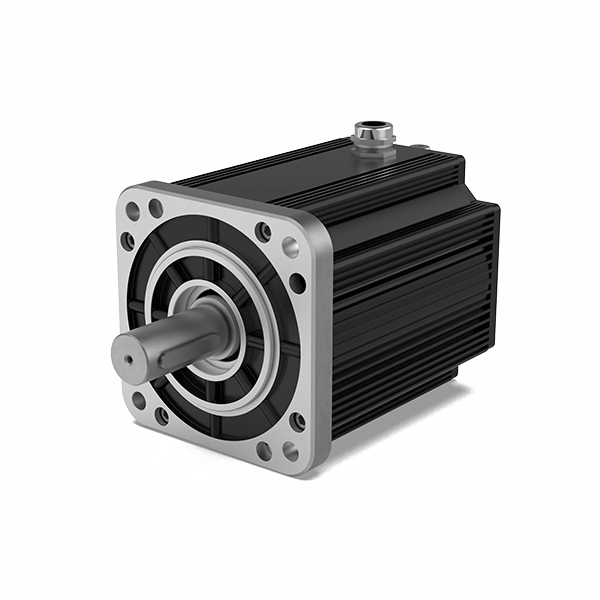

Product Description

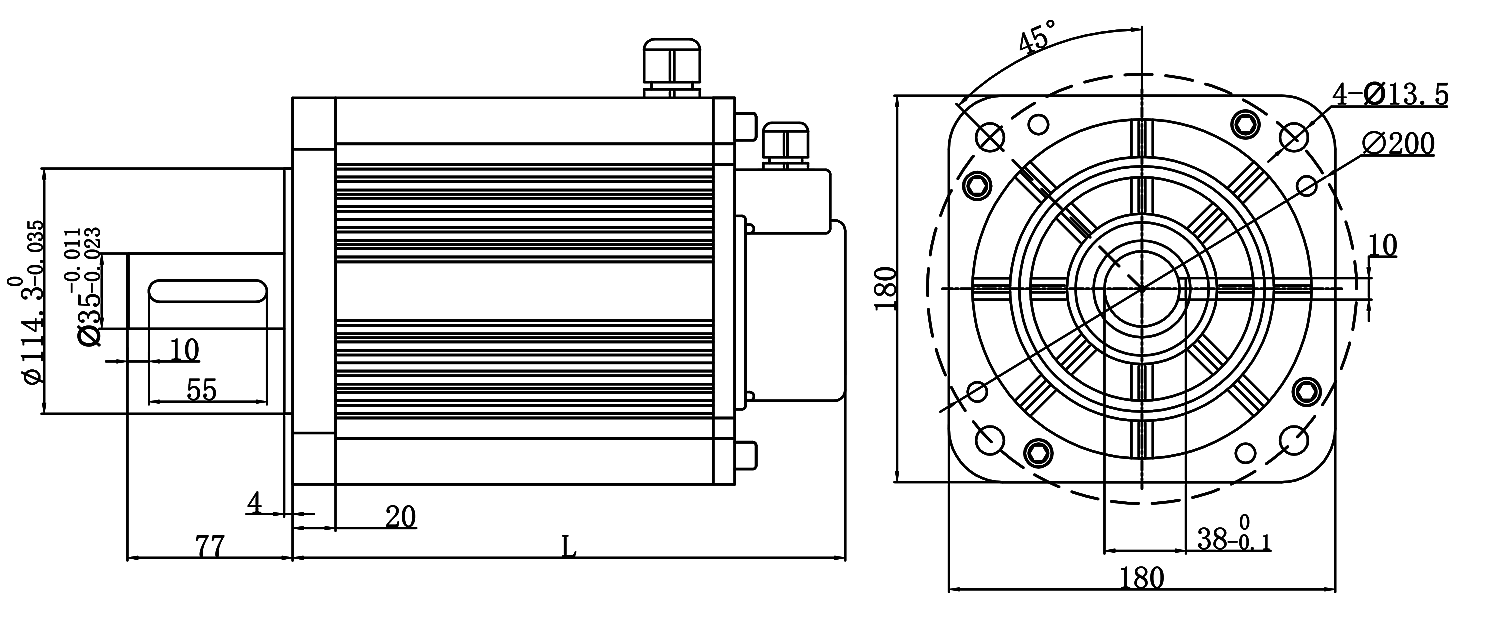

Motor Dimensions
| Motor Model | L1(mm) | L2(mm) | Motor Model | L1(mm) | L2(mm) |
| 180ST-□160XX-XXV | 256.5 | 276.5 | 180ST-□160XXB-XXV | 346.5 | 366.5 |
| 180ST-□190XX-XXV | 277.5 | 297.5 | 180ST-□190XXB-XXV | 367.5 | 387.5 |
| 180ST-□250XX-XXV | 294.5 | 314.5 | 180ST-□250XXB-XXV | 384.5 | 404.5 |
| 180ST-□300XX-XXV | 311.5 | 331.5 | 180ST-□300XXB-XXV | 401.5 | 421.5 |
| 180ST-□360XX-XXV | 332.5 | 352.5 | 180ST-□360XXB-XXV | 422.5 | 442.5 |
| 180ST-□420XX-XXV | 349.5 | 369.5 | 180ST-□420XXB-XXV | 439.5 | 459.5 |
| 180ST-□500XX-XXV | 366.5 | 386.5 | 180ST-□500XXB-XXV | 456.5 | 476.5 |
Note:
1.For the 180 series, when the rated current exceeds 98A, the motor length is L2 (if L2 is omitted, the length defaults to L).
2.For the 180 series with power exceeding 7.5 kW, the shaft diameter is 42 mm.
Motor Dimensions
Electrical Parameters
| Main performance parameters | ||||
Motor Model | 180ST-□16030-24V | 180ST-□19020-24V | 180ST-□25015-24V | 180ST-□30010-24V |
| Rated Power(KW) | 5.0 | 4.0 | 3.9 | 3.0 |
| Rated current(A) | 260 | 208 | 203 | 156 |
| Rated speed(RPM) | 3000 | 2000 | 1500 | 1000 |
| Maximum Speed(RPM) | 3600 | 2400 | 1800 | 1200 |
| Rated Torque(NM) | 16.0 | 19.0 | 25.0 | 30.0 |
| Maximum Torque(RPM) | 40.0 | 47.5 | 62.5 | 75.0 |
| Inertia of rotor(kg.cm²) | 32.6 | 45.0 | 55.1 | 65.2 |
| Main performance parameters | ||||
Motor Model | 180ST-□16030-48V | 180ST-□19030-48V | 180ST-□25030-48V | 180ST-□30025-48V |
| Rated Power(KW) | 5.0 | 6.0 | 7.5 | 9.0 |
| Rated current(A) | 123 | 147 | 184 | 184 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 2500 |
| Maximum Speed(RPM) | 3600 | 3600 | 3600 | 3000 |
| Rated Torque(NM) | 16.0 | 19.0 | 25.0 | 30.0 |
| Maximum Torque(RPM) | 40.0 | 47.5 | 62.5 | 75.0 |
| Inertia of rotor(kg.cm²) | 32.6 | 45.0 | 55.1 | 65.2 |
| Main performance parameters | |||
Motor Model | 180ST-□36020-48V | 180ST-□42020-48V | 180ST-□50020-48V |
| Rated Power(KW) | 7.2 | 8.5 | 10.0 |
| Rated current(A) | 176.0 | 208.0 | 245.0 |
| Rated speed(RPM) | 2000 | 2000 | 2000 |
| Maximum Speed(RPM) | 2400 | 2400 | 2400 |
| Rated Torque(NM) | 36.0 | 42.0 | 50.0 |
| Maximum Torque(RPM) | 72.0 | 84.0 | 100.0 |
| Inertia of rotor(kg.cm²) | 77.5 | 87.7 | 97.8 |
| Main performance parameters | ||||
Motor Model | 180ST-□16030-72V | 180ST-□19030-72V | 180ST-□25030-72V | 180ST-□30030-72V |
| Rated Power(KW) | 5.0 | 6.0 | 7.5 | 9.0 |
| Rated current(A) | 82.0 | 98.0 | 123.0 | 147.0 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 3000 |
| Maximum Speed(RPM) | 3600 | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 16.0 | 19.0 | 25.0 | 30.0 |
| Maximum Torque(RPM) | 40.0 | 47.5 | 62.5 | 75.0 |
| Inertia of rotor(kg.cm²) | 32.6 | 45.0 | 55.1 | 65.2 |
| Main performance parameters | |||
Motor Model | 180ST-□360230-72V | 180ST-□42030-72V | 180ST-□50030-72V |
| Rated Power(KW) | 11.0 | 13.0 | 15.0 |
| Rated current(A) | 180.0 | 212.0 | 245.0 |
| Rated speed(RPM) | 3000 | 3000 | 3000 |
| Maximum Speed(RPM) | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 36.0 | 42.0 | 50.0 |
| Maximum Torque(RPM) | 72.0 | 84.0 | 100.0 |
| Inertia of rotor(kg.cm²) | 77.5 | 87.7 | 97.8 |
