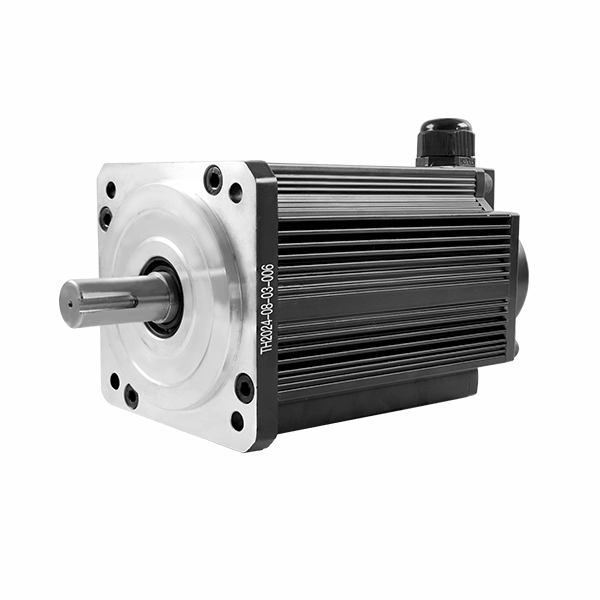

Product Description

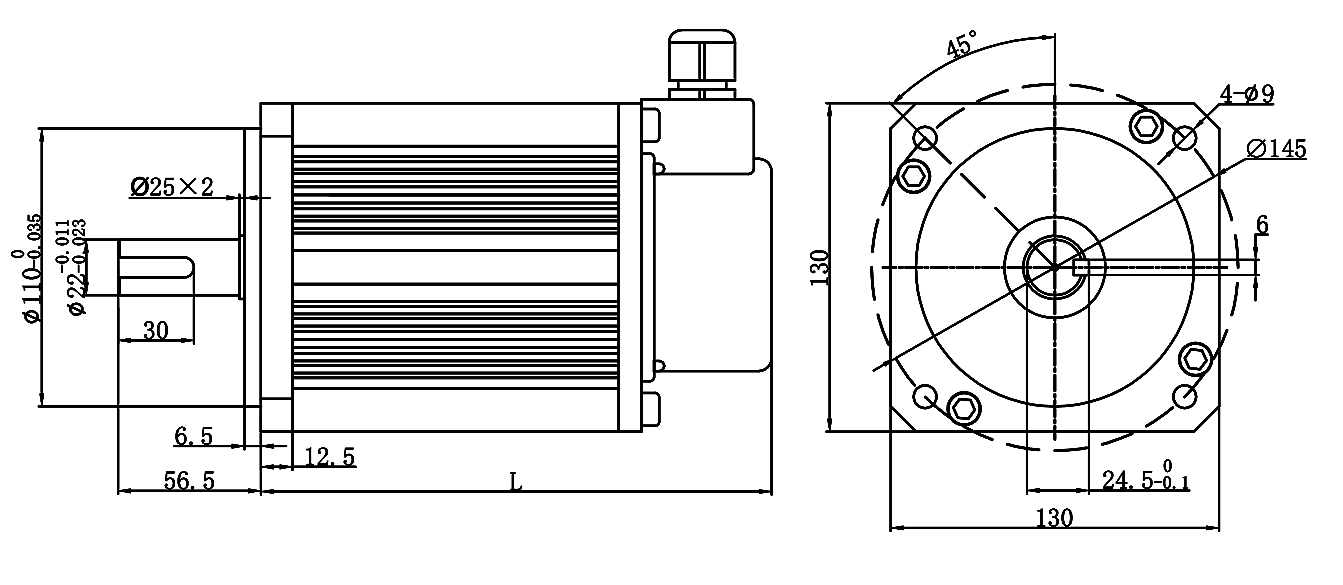

Motor Dimensions
| Motor Model | L(mm) | L2(mm) |
| 130ST-□040XX-XXV | 177.5 | 187.5 |
| 130ST-□060XX-XXV | 187.5 | 197.5 |
| 130ST-□077XX-XXV | 202.0 | |
| 130ST-□100XX-XXV | 238.0 | |
| 130ST-□150XX-XXV | 273.5 | |
| 130ST-□040XXB-XXV | 271.5 | |
| 130ST-□077XXB-XXV | 301.5 | |
| 130ST-□100XXB-XXV | 331.5 | |
| 130ST-□150XXB-XXV | 372.5 |
Note:For the 130 series with rated current >70A, the motor length is L2 (if L2 is omitted, the length is L)
Motor Dimensions
Electrical Parameters
| Main performance parameters | |||||
| Motor Model | 130ST-□04030-24V | 130ST-□06030-24V | 130ST-□07725-24V | 130ST-□10025-24V | 130ST-□15020-24V |
| Rated Power（KW) | 1.2 | 1.8 | 2.0 | 2.5 | 3.0 |
| Rated current(A) | 62.5 | 93.8 | 104.2 | 130.2 | 156.3 |
| Rated speed(RPM) | 3000 | 3000 | 2500 | 2500 | 2000 |
| Maximum speed(RPM) | 3600 | 3600 | 3000 | 3000 | 2400 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(NM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Rotor of Inertia(kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| Main performance parameters | |||||
| Motor Model | 130ST-□04030-48V | 130ST-□06030-48V | 130ST-□07730-48V | 130ST-□10030-48V | 130ST-□15030-48V |
| Rated Power（KW) | 1.2 | 1.8 | 2.4 | 3.0 | 4.5 |
| Rated current(A) | 29.4 | 44.1 | 58.8 | 73.5 | 110.3 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum speed(RPM) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(NM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Rotor of Inertia(kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| Main performance parameters | |||||
| Motor Model | 130ST-□04030-72V | 130ST-□06030-72V | 130ST-□07730-72V | 130ST-□10030-72V | 130ST-□15030-72V |
| Rated Power（KW) | 1.2 | 1.8 | 2.4 | 3.0 | 4.5 |
| Rated current(A) | 19.6 | 29.4 | 39.2 | 49.0 | 73.5 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum speed(RPM) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(NM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Rotor of Inertia(kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
