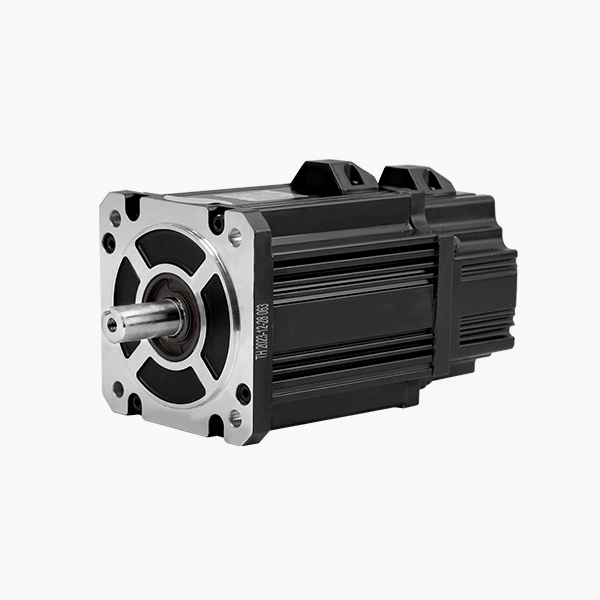

90 DC Servo Motor

  • 90 Series DC Servo Motor

Availability:
Quantity:
Inquire Add to Basket

Product Description

Motor Dimensions

Motor Model L(mm)
90ST-□024XX-XXV 158.5
90ST-□035XX-XXV 168.5
90ST-□050XX-XXV 188.5

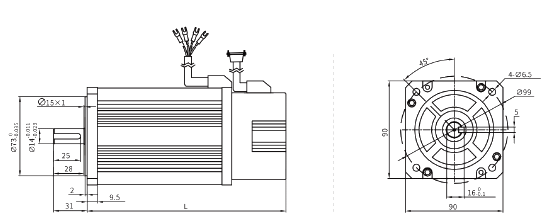

Motor Dimensions

901

Electrical Parameters

Main performance parameters
Motor Model 90ST-□02430-24V 90ST-□03530-24V 90ST-□05020-24V
Rated Power（KW) 0.75 1.1 1.0
Rated current(A) 36.8 53.9 49.0
Rated speed(RPM) 3000 3000 2000
Maximum speed(RPM) 3600 3600 2400
Rated Torque(NM) 2.4 3.5

5.0
Maximum Torque(NM) 7.2 10.5 15
Rotor of Inertia(kg.cm²) 1.0 1.3 1.9

Main performance parameters
Motor Model 90ST-□02430-48V 90ST-□03530-48V 90ST-□05030-48V
Rated Power（KW) 0.75 1.1 1.5
Rated current(A) 18.4 27.0 36.8
Rated speed(RPM) 3000 3000 3000
Maximum speed(RPM) 3600 3600 3600
Rated Torque(NM) 2.4 3.5

5.0
Maximum Torque(NM) 7.2 10.5 15
Rotor of Inertia(kg.cm²) 1.0 1.3 1.9
Main performance parameters
Motor Model 90ST-□02430-72V 90ST-□03530-72V 90ST-□05030-72V
Rated Power（KW) 0.75 1.1 1.5
Rated current(A) 12.3 18.0 24.5
Rated speed(RPM) 3000 3000 3000
Maximum speed(RPM) 3600 3600 3600
Rated Torque(NM) 2.4 3.5

5.0
Maximum Torque(NM) 7.2 10.5 15
Rotor of Inertia(kg.cm²) 1.0 1.3 1.9
