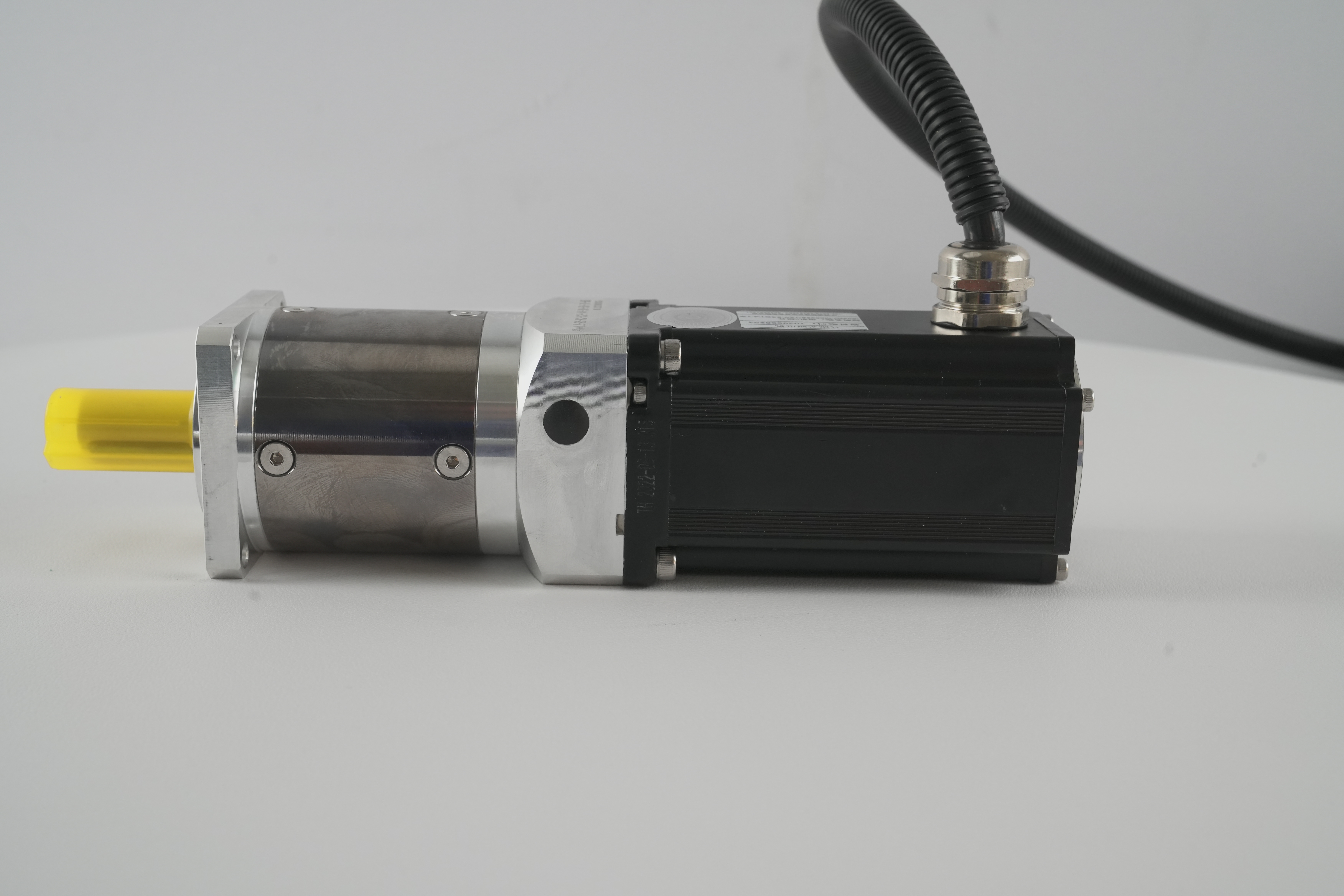

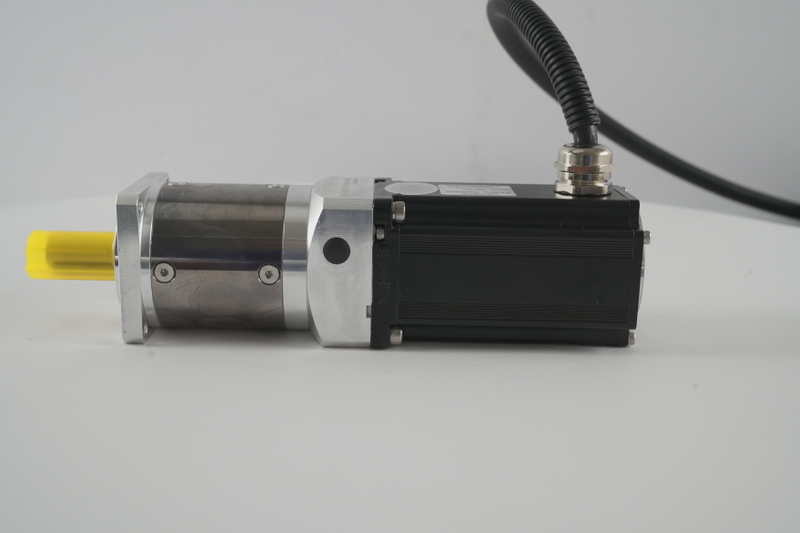

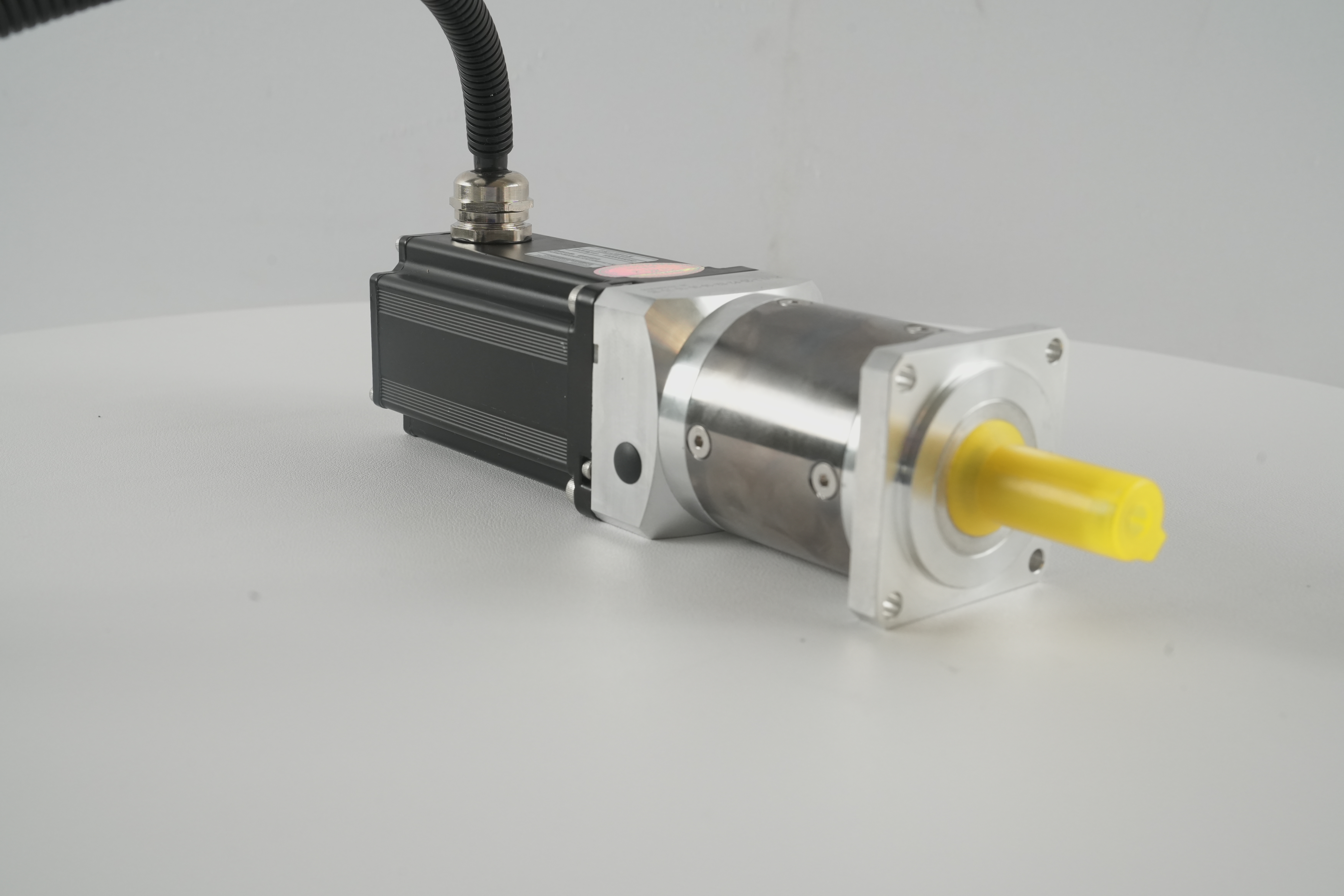

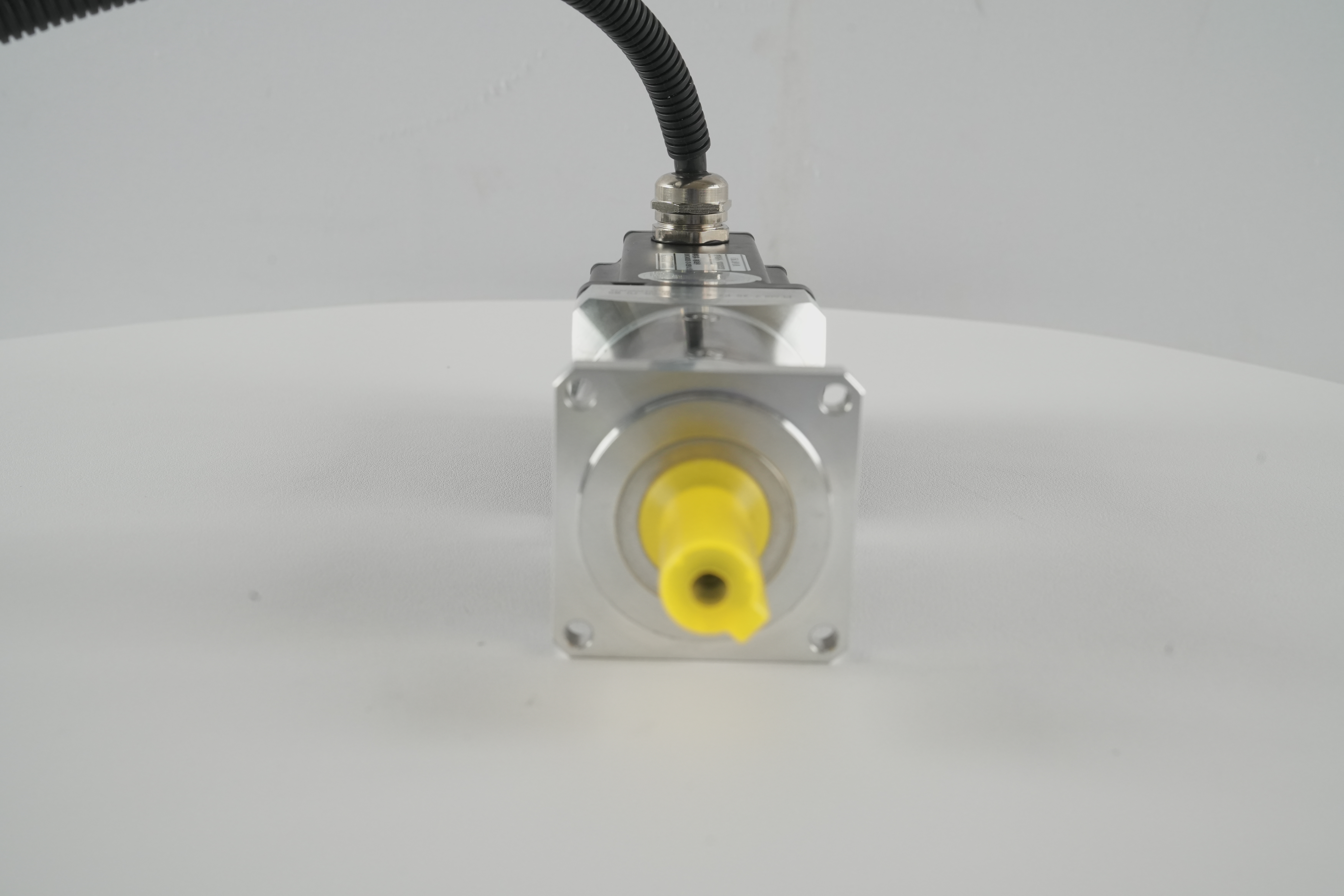

Product Description
Motor Model
| Motor Model | L(mm) |
| 60ST-H006XX-XXV | 143 |
| 60ST-H013XX-XXV | 168 |
| 60ST-H020XX-XXV | 193 |
| 60ST-H006XXB-XXV | 187 |
| 60ST-H013XXB-XXV | 212 |
| 60ST-H020XXB-XXV | 237 |
Motor Dimensions
Electrical Parameters
| Main performance parameters | |||
| Motor Model | 60ST-H00630-24V | 60ST-H01330-24V | 60ST-H02030-24V |
| Rated Power（KW) | 0.2 | 0.4 | 0.6 |
| Rated current(A) | 11.1 | 22.2 | 33.3 |
| Rated speed(RPM) | 3000 | 3000 | 3000 |
| Maximum speed(RPM) | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 0.6 | 1.3 | 2 |
Maximum Torque(NM) | 1.8 | 3.9 | 6 |
| Rotor of Inertia(kg.cm²) | 0.33 | 0.5 | 0.66 |
| Main performance parameters | |||
| Motor Model | 60ST-H00630-48V | 60ST-H01330-48V | 60ST-H02030-48V |
| Rated Power（KW) | 0.2 | 0.4 | 0.6 |
| Rated current(A) | 5.2 | 10.4 | 15.6 |
| Rated speed(RPM) | 3000 | 3000 | 3000 |
| Maximum speed(RPM) | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 0.6 | 1.3 | 2 |
Maximum Torque(NM) | 1.8 | 3.9 | 6 |
| Rotor Inertia(kg.cm²) | 0.33 | 0.5 | 0.66 |
| Main performance parameters | |||
| Motor Model | 60ST-H00630-72V | 60ST-H01330-72V | 60ST-H02030-72V |
| Rated Power（KW) | 0.2 | 0.4 | 0.6 |
| Rated current(A) | 3.5 | 6.9 | 10.4 |
| Rated speed(RPM) | 3000 | 3000 | 3000 |
| Maximum speed(RPM) | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 0.6 | 1.3 | 2 |
Maximum Torque(NM) | 1.8 | 3.9 | 6 |
| Rotor Inertia(kg.cm²) | 0.33 | 0.5 | 0.66 |
