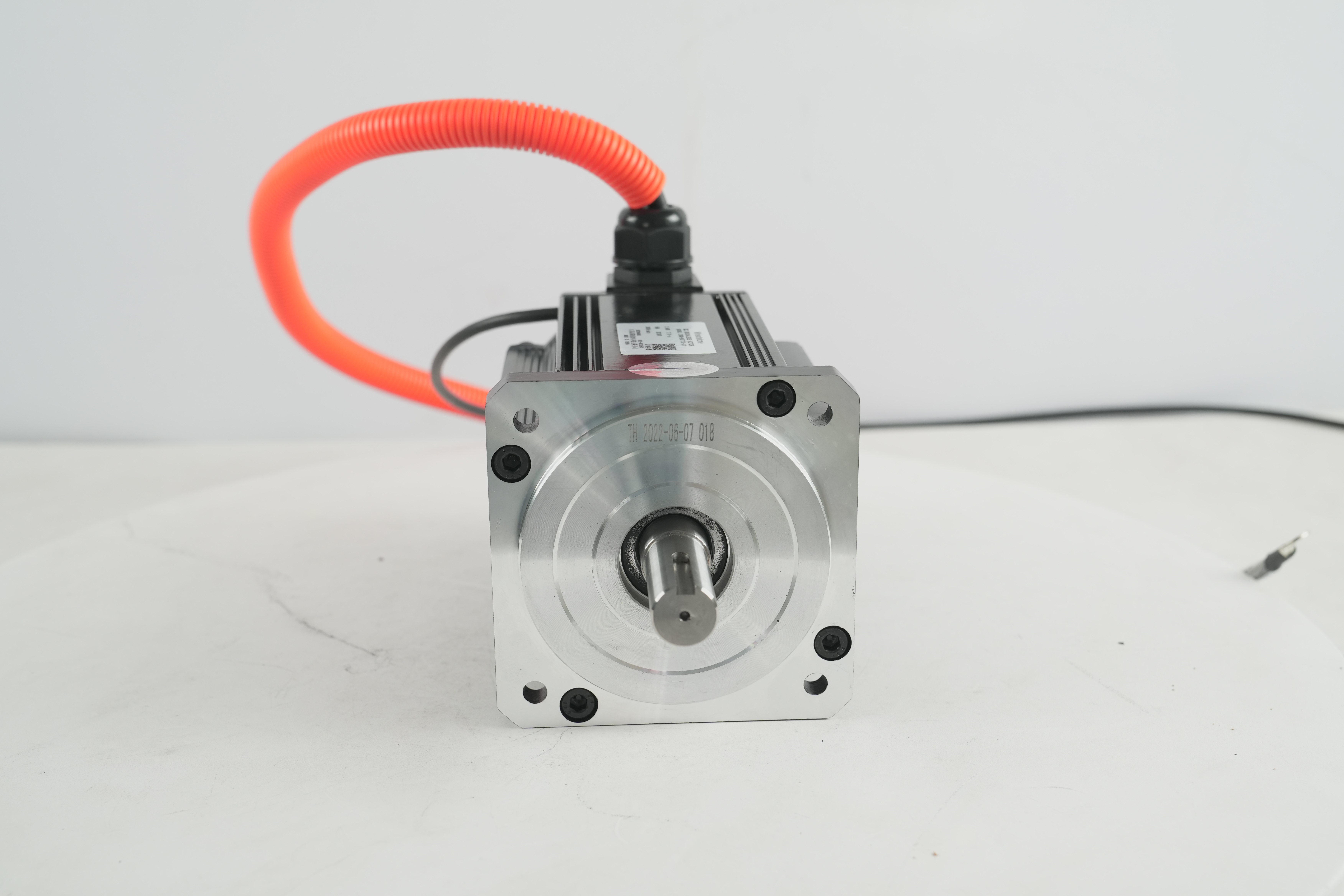

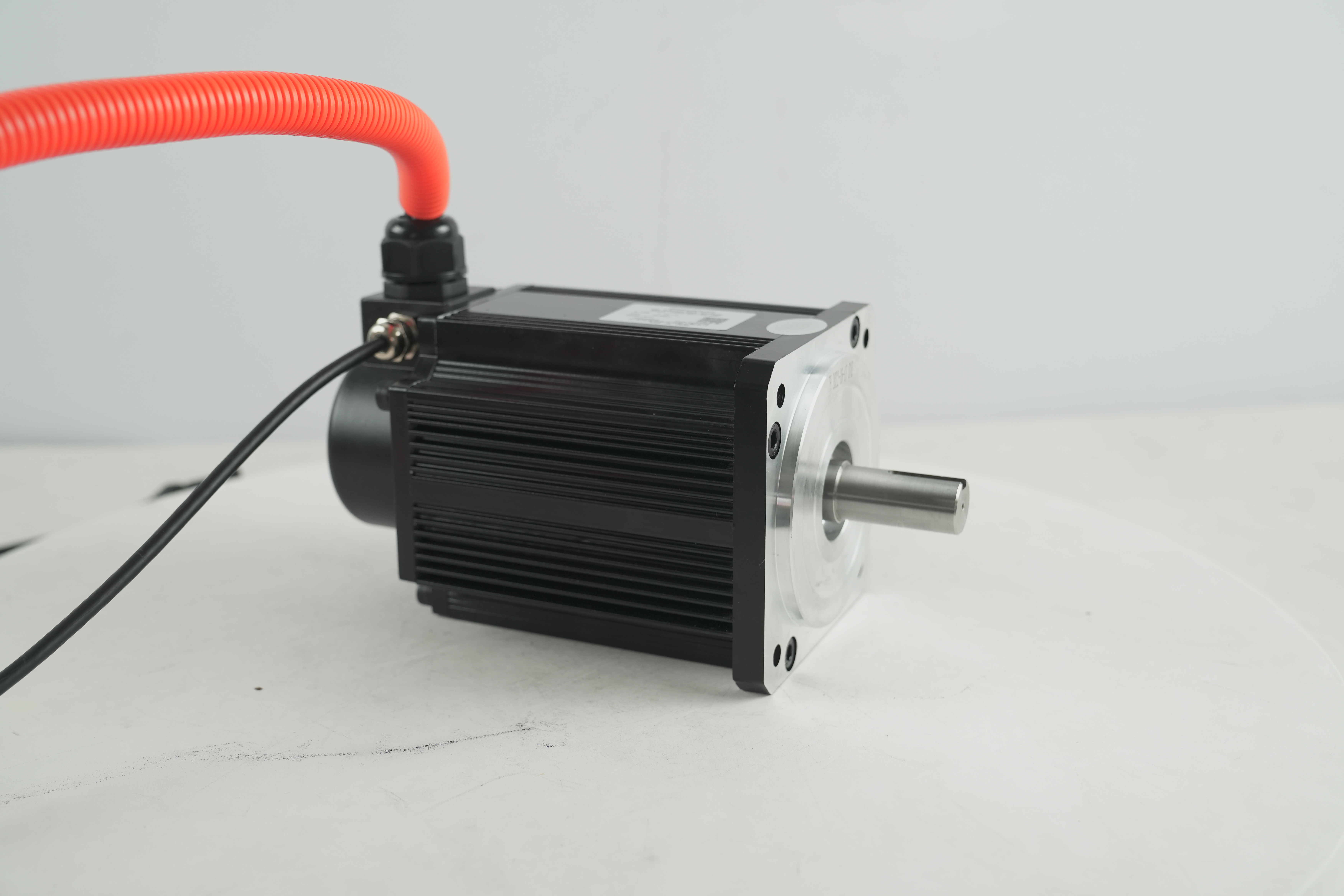

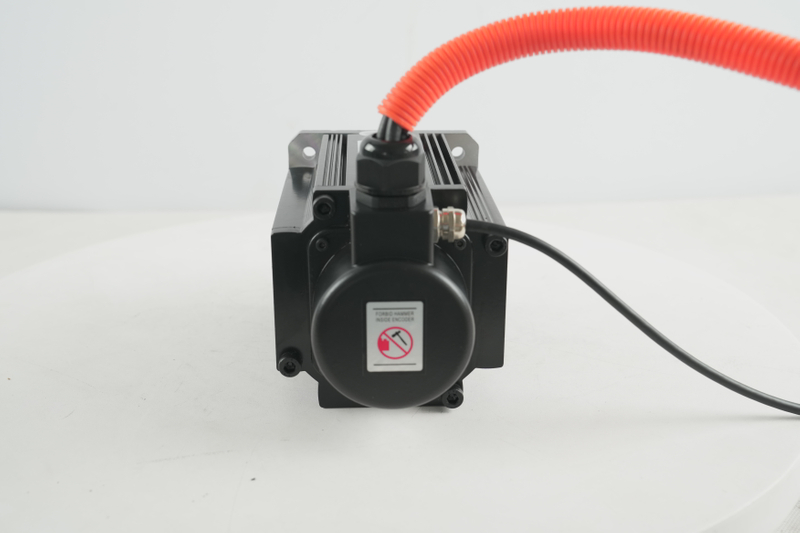

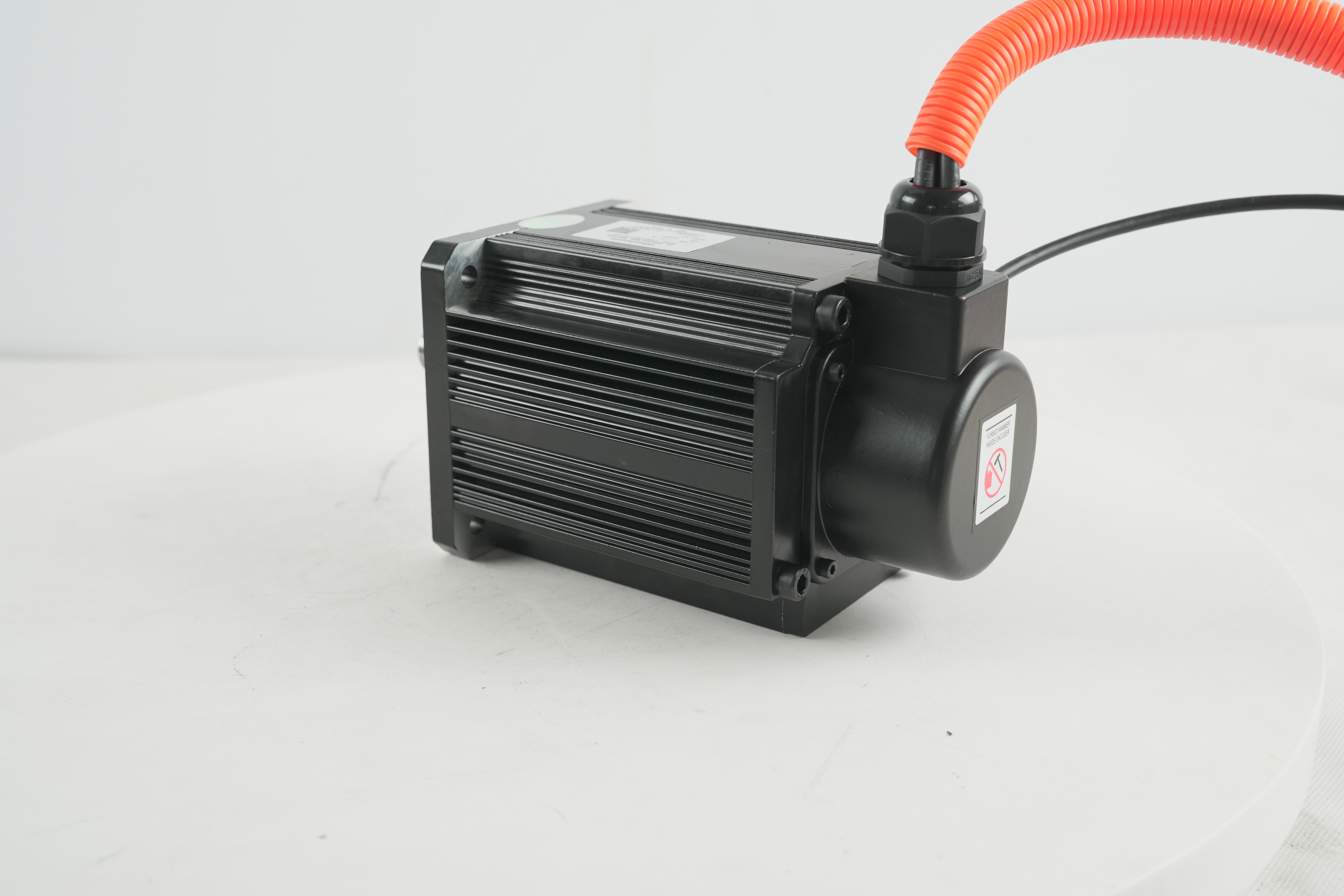

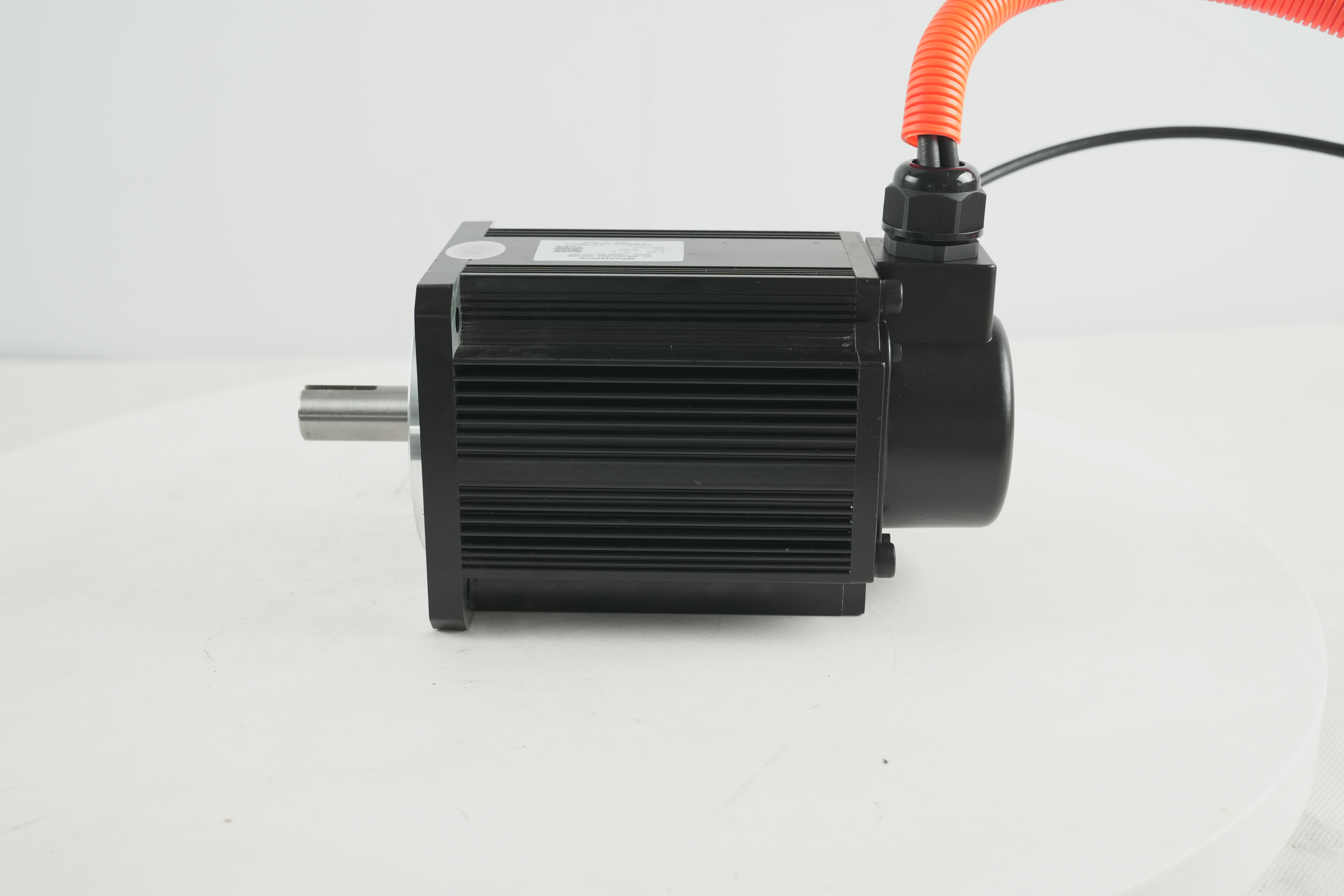

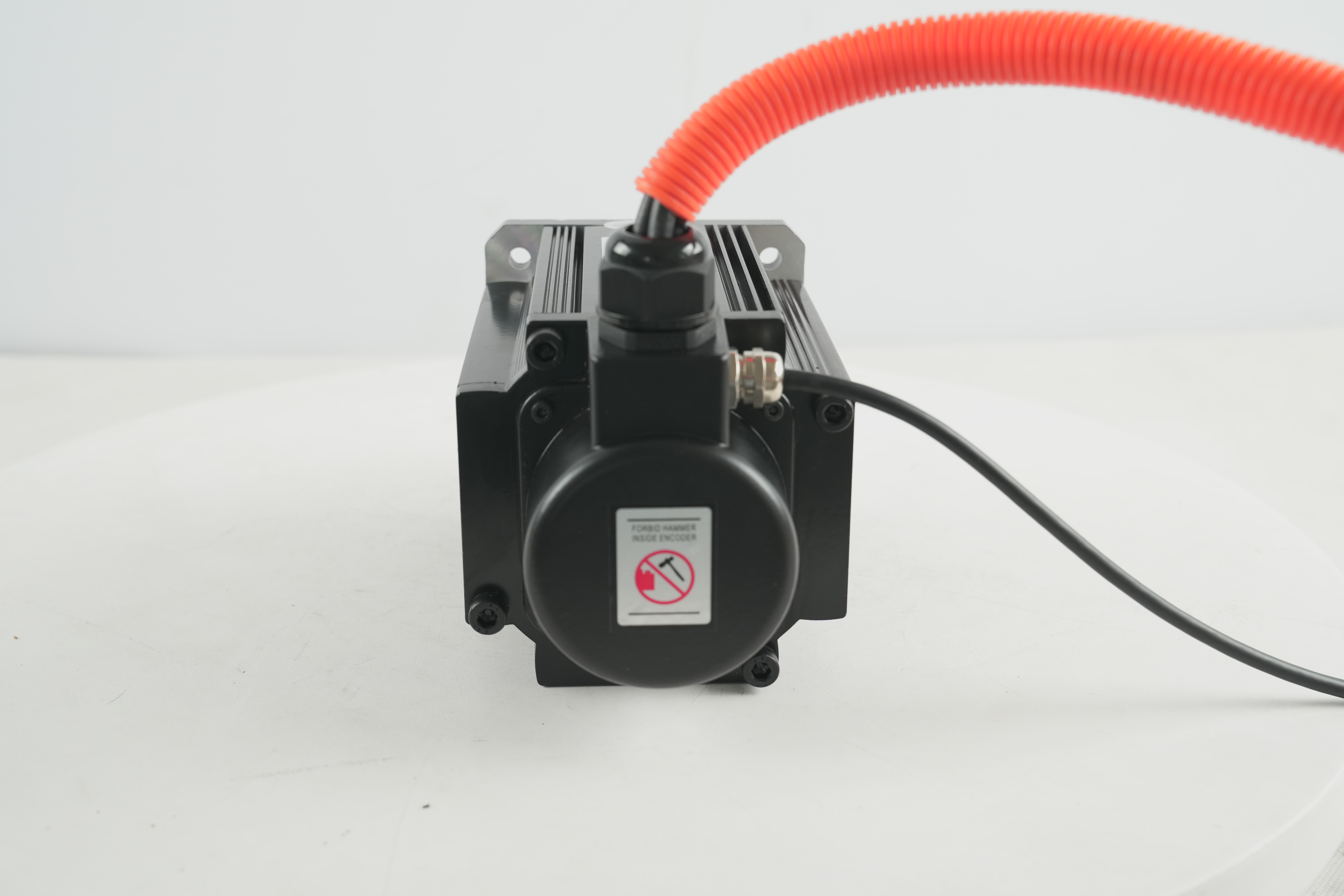

Product Description
Motor Model
| Motor Model | L(mm) | L2(mm) |
| 130ST-H040XX-XXV | 177.5 | 187.5 |
| 130ST-H060XX-XXV | 187.5 | 197.5 |
130ST-H077XX-XXV | 212.0 | |
| 130ST-H100XX-XXV | 248.0 | |
| 130ST-H150XX-XXV | 283.5 | |
130ST-H040XXB-XXV | 235.0 | |
| 130ST-H060XXB-XXV | 245.0 | |
| 130ST-H077XXB-XXV | 259.5 | |
| 130ST-H100XXB-XXV | 295.5 | |
| 130ST-H150XXB-XXV | 351.0 |
Note: For the 130 series, when the rated current exceeds 70A, the motor length is L2 (if L2 is omitted, the length defaults to L).
Motor Dimensions
Electrical Parameters
| Main performance parameters | |||||
Motor Model | 130ST-H04030-24V | 130ST-H06030-24V | 130ST-H07725-24V | 130ST-H10025-24V | 130ST-H15020-24V |
| Rated Power(KW) | 1.2 | 1.8 | 2.0 | 2.5 | 3.0 |
| Rated current(A) | 31.3 | 93.8 | 104.2 | 130.2 | 156.3 |
| Rated speed(RPM) | 3000 | 3000 | 2500 | 2500 | 2000 |
| Maximum Speed(RPM) | 3600 | 3600 | 3000 | 3000 | 2400 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(RPM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Inertia of rotor(kg.cm²) | 3.1 | 12.6 | 15.3 | 21.4 | 27.7 |
| Main performance parameters | |||||
Motor Model | 130ST-H04030-48V | 130ST-H06030-48V | 130ST-H07730-48V | 130ST-H10030-48V | 130ST-H15030-48V |
| Rated Power(KW) | 1.2 | 1.8 | 2.4 | 3.0 | 4.5 |
| Rated current(A) | 29.4 | 44.1 | 58.8 | 73.5 | 110.3 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Speed(RPM) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(RPM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Inertia of rotor(kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| Main performance parameters | |||||
Motor Model | 130ST-H04030-72V | 130ST-H06030-72V | 130ST-H07730-72V | 130ST-H10030-72V | 130ST-H15030-72V |
| Rated Power(KW) | 1.2 | 1.8 | 2.4 | 3.0 | 4.5 |
| Rated current(A) | 19.6 | 29.4 | 39.2 | 49.0 | 73.5 |
| Rated speed(RPM) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Speed(RPM) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated Torque(NM) | 4.0 | 6.0 | 7.7 | 10.0 | 15.0 |
| Maximum Torque(RPM) | 12.0 | 18.0 | 23.1 | 30.0 | 45.0 |
| Inertia of rotor(kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
