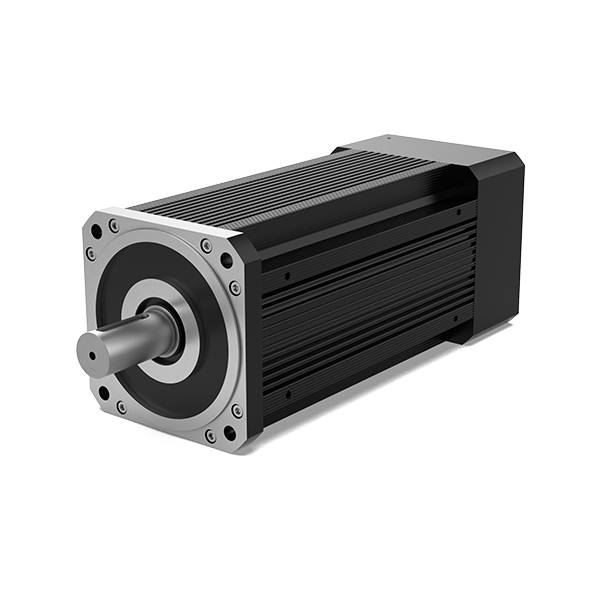

260 Series Explosion-proof DC Servo Motor

Description of 260 EX series explosion proof servo motor

"Explosion-proof DC Servo Motors," which are designed to be used in hazardous or explosive environments, where there is a risk of ignition due to the presence of flammable gases, liquids, or dust.

Technical Parameter of 260 Series Explosion-proof DC Servo Motor

Motor Model

Motor Model	L(mm)
260ST-口570XX-EX-XXV	432
260ST-口850XX-EX-XXV	482
260ST-口11AXX-EX-XXV	532
260ST-口14AXX-EX-XXV	582
260ST-口17AXX-EX-XXV	632
260ST-口20AXX-EX-XXV	682
260ST-口570XXB-EX-XXV	520
260ST-口850XXB-EX-XXV	570
260ST-口11AXXB-EX-XXV	620
260ST-口14AXXB-EX-XXV	670
260ST-口17AXXB-EX-XXV	720
260ST-口20AXXB-EX-XXV	770

Motor Dimensions

Electrical Parameters

Main performance parameters
Motor Model	260ST-口57030-EX-48V	260ST-口85020-EX-48V	260ST-口11A15-EX-48V	260ST-口14A10-EX-48V
Rated Power(KW)	18.0	18.0	17.0	15.0
Rated current(A)	326.0	324.0	315.0	267.0
Rated speed(RPM)	3000	2000	1500	1000
Maximum speed(RPM)	3600	2400	1800	1200
Rated Torque(NM)	57.0	85.0	110.0	140.0
Maximum Torque(NM)	114.0	170.0	220.0	280.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0	800.0

Main performance parameters
Motor Model	260ST-口57030-EX-72V	260ST-口85015-EX-72V	260ST-口11A15-EX-72V
Rated Power(KW)	18.0	13.0	17.0
Rated current(A)	326.0	243.0	315.0
Rated speed(RPM)	1000	1000	1500
Maximum speed(RPM)	1200	1200	1800
Rated Torque(NM)	57.0	85.0	110.0
Maximum Torque(NM)	114.0	170.0	220.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0

Main performance parameters
Motor Model	260ST-口14A10-EX-72V	260ST-口17A10-EX-72V
Rated Power(KW)	18.0	27.0
Rated current(A)	44.0	65.0
Rated speed(RPM)	1000	1000
Maximum speed(RPM)	1200	1200
Rated Torque(NM)	140.0	170.0
Maximum Torque(NM)	280.0	340.0
Rotor of Inertia(kg.cm²)	800.0	960.0

Main performance parameters
Motor Model	260ST-口57030-EX-96V	260ST-口85030-EX-96V	260ST-口11A20-EX-96V
Rated Power(KW)	18.0	27.0	23.0
Rated current(A)	219.0	327.0	282.0
Rated speed(RPM)	3000	3000	2000
Maximum speed(RPM)	3600	3600	2400
Rated Torque(NM)	57.0	85.0	110.0
Maximum Torque(NM)	114.0	170.0	220.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0

Main performance parameters
Motor Model	260ST-口14A15-EX-96V	260ST-口17A15-EX-96V	260ST-口20A10-EX-96V
Rated Power(KW)	22.0	27.0	21.0
Rated current(A)	269.0	335.0	257.0
Rated speed(RPM)	1500	1500	1000
Maximum speed(RPM)	1800	1800	1200
Rated Torque(NM)	140.0	170.0	200.0
Maximum Torque(NM)	280.0	340.0	400.0
Rotor of Inertia(kg.cm²)	800.0	960.0	1120.0

Main performance parameters
Motor Model	260ST-口57030-EX-144V	260ST-口85030-EX-144V	260ST-口11A30-EX-144V
Rated Power(KW)	18.0	27.0	35.0
Rated current(A)	163.0	243.0	315.0
Rated speed(RPM)	3000	3000	3000
Maximum speed(RPM)	3600	3600	3600
Rated Torque(NM)	57.0	85.0	110.0
Maximum Torque(NM)	114.0	170.0	220.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0

Main performance parameters
Motor Model	260ST-口14A20-EX-144V	260ST-口17A20-EX-144V	260ST-口20A15-EX-144V
Rated Power(KW)	29.0	36.0	31.0
Rated current(A)	267.0	332.0	286.0
Rated speed(RPM)	2000	2000	1500
Maximum speed(RPM)	2400	2400	1800
Rated Torque(NM)	140.0	170.0	200.0
Maximum Torque(NM)	280.0	340.0	400.0
Rotor of Inertia(kg.cm²)	800.0	960.0	1120.0

Main performance parameters
Motor Model	260ST-口57030-EX-310V	260ST-口85030-EX-310V	260ST-口11A30-EX-310V
Rated Power(KW)	18.0	27.0	35.0
Rated current(A)	76.0	113.0	146.0
Rated speed(RPM)	3000	3000	3000
Maximum speed(RPM)	3600	3600	3600
Rated Torque(NM)	57.0	85.0	110.0
Maximum Torque(NM)	114.0	170.0	220.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0

Main performance parameters
Motor Model	260ST-口14A25-EX-310V	260ST-口17A25-EX-310V	260ST-口20A25-EX-310V
Rated Power(KW)	37.0	46.0	52.0
Rated current(A)	155.0	193.0	222.0
Rated speed(RPM)	2500	2500	2500
Maximum speed(RPM)	3000	3000	3000
Rated Torque(NM)	140.0	170.0	200.0
Maximum Torque(NM)	280.0	340.0	400.0
Rotor of Inertia(kg.cm²)	800.0	960.0	1120.0

Main performance parameters
Motor Model	260ST-口57030-EX-540V	260ST-口85030-EX-540V	260ST-口11A30-EX-540V
Rated Power(KW)	18.0	27.0	35.0
Rated current(A)	44.0	65.0	84.0
Rated speed(RPM)	3000	3000	3000
Maximum speed(RPM)	3600	3600	3600
Rated Torque(NM)	57.0	85.0	110.0
Maximum Torque(NM)	114.0	170.0	220.0
Rotor of Inertia(kg.cm²)	320.0	480.0	640.0

Main performance parameters
Motor Model	260ST-口14A25-EX-540V	260ST-口17A25-EX-540V	260ST-口20A25-EX-540V
Rated Power(KW)	37.0	46.0	52.0
Rated current(A)	89.0	111.0	127.0
Rated speed(RPM)	2500	2500	2500
Maximum speed(RPM)	3000	3000	3000
Rated Torque(NM)	140.0	170.0	200.0
Maximum Torque(NM)	280.0	340.0	400.0
Rotor of Inertia(kg.cm²)	800.0	960.0	1120.0

Torque-Speed Characteristics Curve

1. Special areasy

2. Mining Industry

3. Pharmaceutical Industry

4. Petrochemical industry

5. Machinery industry

6. AGV

7. Special vehicles

8. Storage
