At 2 AM in a fine chemical plant in Shandong, duty engineer Liu stared at the monitor with growing concern. The current waveform for Reactor No. 3's agitator motor was fluctuating wildly, like an erratic heartbeat. The speed oscillated, and the stirring shaft emitted a rhythmic knocking sound. The equipment had only been in operation for three months—this was its second failure.
"Same process recipe, same load conditions. Why do two different motors both fail like this?" Liu was perplexed.
When a Wheatstone engineer arrived on-site, the root cause was quickly identified: a severe mismatch between the motor inertia and the load inertia . The selection had focused only on power and torque, overlooking the critical parameter of inertia. The motor, driving high-viscosity materials in the reactor, was like a small horse trying to pull an oversized cart—it shuddered under the strain.
In chemical reactor agitator systems, inertia matching isn't an optional extra—it's a fundamental requirement. Today, we'll explore why it matters and how to calculate it.

A reactor agitation system is a classic rotational system comprising a motor, gearbox, shaft, and impeller. During start-up, speed changes, or stopping, the motor must overcome the total inertia of the entire system.
When starting the agitator, the motor must accelerate the load inertia from standstill to the target speed . If the motor inertia is too small relative to the load inertia, several characteristic problems emerge:
Low-speed jitter: Torque fluctuations cause the entire stirring shaft to vibrate when rotating through viscous media
Slow response: The motor lags when changing speeds, delaying process control
High current fluctuations: The motor frequently enters overload, leading to excessive temperature rise and shortened insulation life
Poor mixing results: Inconsistent material agitation affects product quality
Based on decades of engineering practice, the industry has established general principles for inertia matching. The ratio of load inertia (JL) to motor rotor inertia (JM) is called the inertia ratio .
Recommended values vary by application:
General industrial agitation: Inertia ratio ≤ 10
Precision reaction control: Inertia ratio ≤ 5
Fast response, frequent start-stop: Inertia ratio ≤ 3
For reactors with variable loads and high-viscosity materials, the ratio should typically be controlled below 5. If it exceeds 10, the system becomes prone to resonance, severely impacting control accuracy.
Why these recommendations? An excessively high inertia ratio lowers the system's natural frequency, making it susceptible to resonance with mechanical structures. Additionally, the motor must output higher torque to overcome load inertia, increasing heat generation and reducing service life.
The inertia calculation for an agitation system typically includes: motor rotor, coupling, gearbox,agitation shaft, impeller, and process media.
Step 1: Identify Components for Calculation
A typical reactor system includes: motor, gearbox, coupling,agitation shaft, and impeller. For solid-liquid mixing, the media itself contributes additional inertia.
Step 2: Calculate Component Inertias
For rotating components (shafts, impellers), the inertia formula is :
J = (π × ρ × L × R⁴) / 32
Simplified approximation (for steel cylinders):
J ≈ 0.78 × 10⁻⁶ × D⁴ × L (D in mm, L in mm, J in kg·m²)
Step 3: Account for Media Effects
For high-viscosity fluids, the media itself adds load.agitation power depends on fluid density, viscosity, and rotational speed. In practice, engineers either use experimental power curves or reference data from similar installations.
Step 4: Calculate Total Load Inertia
Sum the inertias of all rotating components and add the media contribution to obtain total load inertia JL.
Step 5: Calculate Inertia Ratio
Inertia Ratio = JL / JM
JM is the motor rotor inertia, available from manufacturer datasheets .
A chemical plant's polymerization reactor has these parameters:
Totalagitation shaft and impeller mass: approx. 200kg, radius of gyration approx. 0.3m
High-viscosity media,additional media inertia estimated at 0.5 kg·m²
Gearbox ratio i=10
Gearbox efficiency η≈90%
Step 1: Calculateagitation shaft and impeller inertia
Estimating as a cylinder, J_impeller ≈ 200 × 0.3⊃2; ≈ 18 kg·m² (actual calculation requires specific geometry)
Step 2: Mediaadditional inertia
J_media ≈ 0.5 kg·m²
Step 3: Total load inertia (at gearbox output)
J_load = 18 + 0.5 = 18.5 kg·m²
Step 4: Refer to motor shaft
JL = J_load / i⊃2; = 18.5 / 100 ≈ 0.185 kg·m²
Step 5: Select motor

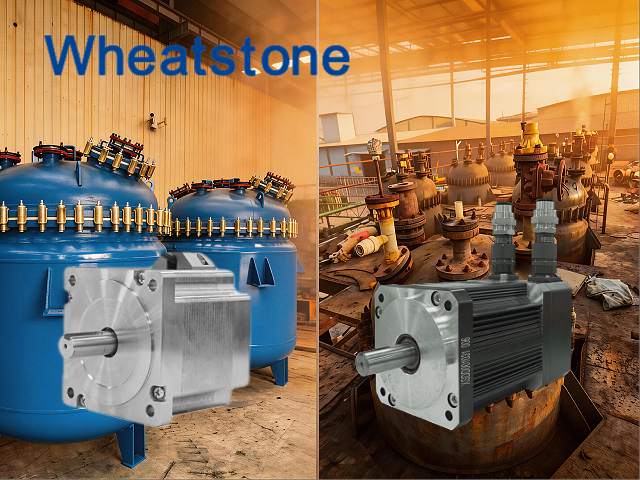

Consulting Wheatstone explosion-proof servo motor specifications, a 130EX series model has rotor inertia JM = 0.045 kg·m²
Inertia Ratio = 0.185 / 0.045 ≈ 4.1, well below the recommended limit of 5.
| Series | Frame(mm) | Power Range(kW) | Rated Torque(Nm) | Rotor Inertia(kg·cm²) | Typical Applications |
|---|---|---|---|---|---|
| 40EX | 40 | 0.05-0.2 | 0.16-0.6 | 0.046-0.08 | Small reactors, dosing |
| 60EX | 60 | 0.2-0.75 | 0.6-2.4 | 0.3-0.8 | Pilot reactors, agitators |
| 90EX | 90 | 0.2-1.0 | 0.6-3.3 | 0.3-1.2 | Industrial reactors, mixers |
| 110EX | 110 | 0.6-2.3 | 2-7.3 | 2.5-5.0 | Polymerization kettles |
| 130EX | 130 | 1.2-4.0 | 4-12.7 | 4.5-8.5 | High-pressure reactors |
| 150EX | 150 | 3.0-5.5 | 10-18 | 10-15 | Large chemical vessels |
| 180EX | 180 | 5.0-7.5 | 16-24 | 18-25 | Ultra-largeagitation systems |
| Custom Series | Custom | Custom | Custom | Custom | Special applications |
All models can be customized for voltage, speed, and mounting interfaces, with Ex d IIB T4 Gb certification and IP65+ protection .
Founded in 2003, Jiangsu Wheatstone has specialized in control motors for over two decades, offering:
Explosion-Proof Servo Motors: 40EX-220EX series, 0.2kW-22kW, Ex d IIB T4 Gb certified
Explosion-Proof Stepper Motors: HB series, 42-110mm frames, for open-loop control
Integrated Explosion-Proof Servo Motors: Drive-integrated, 40% smaller footprint
Explosion-Proof Brushless DC Motors: 60/80/110BL series for AGVs, mobile equipment
Mining Explosion-Proof Motors: 180ST series with coal mine certification
Vacuum Motors: VX series for semiconductor and research applications
High-Temperature Motors: TBYC/WCS series, -196℃ to +200℃
Deep-Sea Motors: WDU series, 8000-meter rated
Radiation-Resistant Motors: For nuclear and medical equipment
Frameless Torque Motors: For robot joints
Axial Flux Motors: For space-constrained applications
Wheatstone holds China CCC, EU ATEX, and international IECEx certifications, making us one of the few manufacturers qualified for Class I (Mining), Class II (Gas), and Class III (Dust) applications. From requirements analysis to custom design to on-site commissioning, our engineers provide full-spectrum technical support.
